1.51 inch Transparent OLED screen
►Resolution : 128×64 dots
►View Direction: All
►Interface: SPI/I2C
►Driver IC: SSD1309
►RTP/CTP : Optional
►Brightness(cd/m²): 380
►Outline Dimension: 42.04 x 27.22 mm(mm)
Description
HC-151CB1001 is a 1.51 inch OLED screen with a resolution of 128×64 pixels, drive SSD1309, brightness up to 320-800cd/m2 (typical value),OLED transparent screen, full viewing Angle, using four-line SPI and I2C interfaces, good compatibility. High transmission speed SPI and I2C control interface switch can access Raspberry Pi/Arduino/STM32 and other main control boards. IPS screen. The logic power supply voltage range is 2.4V to 3.3V. Touch can choose resistive touch screen or capacitive touch screen For touch screen control, we have two connection methods: welded cable FPC and plug-in cable, which can be adjusted with a polarizer to have a wider viewing angle, high definition high-brightness wide viewing angle. It can operate in temperatures from -20°C to +70°C and has a storage temperature range of -30°C to +80°C. The quality of Smart Lcd display is higher than the industry standard, batches of products have no color cast, color and brightness are consistent, industrial and consumer grade production process requirements, stable quality, continuous supply, worry free after sales service and technical support.
General Specifications
Size | 1.51 inch |
Display panel | Transparent OLED |
Resolution | 128 x 64 |
Outline size | 42.04 x 27.22 mm |
Active Area | 35.05 x 15.32 mm |
Viewing Direction | All |
Panel Type | OLED |
Pixel pitch | 0.274 x 0.274mm |
Pixel size | 0.254 x 0.254 mm |
Communication interface | 4-wire SPI/I2C |
Operating Voltage | 3.3V / 5 V |
Driver | Embedded driver |
Size of driver board | 41 x 22.5 mm |
Drawing
Note:
The lcd display pictures and text parameters in the above pages are only for illustration. Smart Company will provide accurate information as much as possible. The tft display pictures published on this site may be slightly different from the actual lcd display. Please refer to the actual tft display and the detailed specification of the TFT Lcd display screen. The specific model information shall prevail. For specific details, please contact the relevant business personnel. If there is any relevant modification to the above content, no prior notice will be given.
Specifications

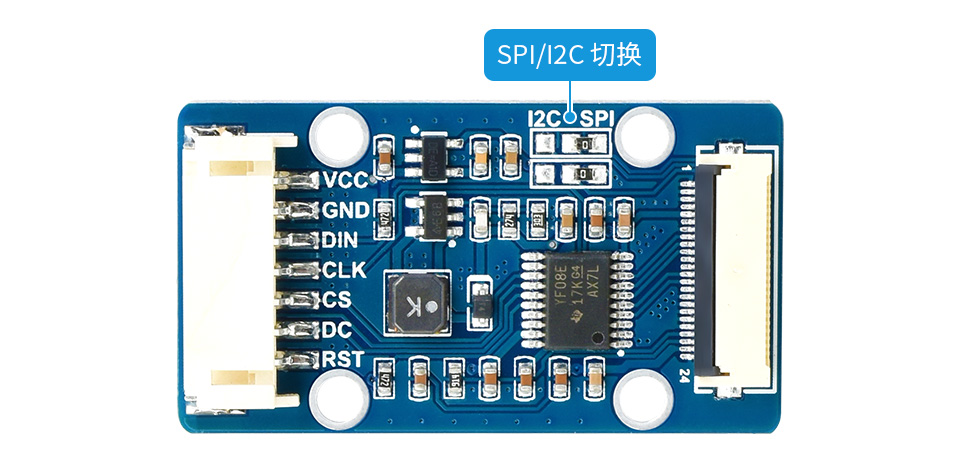

LCM Pin Definition
VCC | Power (3.3V / 5V input) |
GND | Ground |
DIN | SPI / I2C data input |
CLK | SPI / I2CI clock input |
CS | Chip selection, low active |
DC | Data/Command selection (high for data, low for command) |
RST | Reset, low active |
Control board connection mode
Item | Symbol | Min | Typ | Max | Unit |
TFT gate on voltage | VGH | -- | 15 | -- | V |
TFT gate off voltage | VGL | -- | -10 | -- | V |
TFT common electrode Voltage | Vcom | -- | -1 | -- | V |
Operating conditions
Item | Symbol | Min. | Typ. | Max. | Unit |
Analog Supply Voltage | VCI | 2.5 | 2.8 | 3.3 | V |
Digital Supply Voltage | VDD | 2.5 | 2.8 | 3.3 | V |
I/O Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
Input High Voltage | VIH | 0.8*IOVCC | - | IOVCC | V |
Input Low Voltage | VIL | 0 | - | 0.2*IOVCC | V |
Output High Voltage | VOH | 0.8*IOVCC | - | - | V |
Output Low Voltage | VOL | - | - | 0.2*IOVCC | V |
Control board connection mode
Access Raspberry Pi control panel
Connect the Arduino control board
1. Basic specifications
The required TFT Lcd screen size, resolution, communication interface type between motherboard and TFT screen, display viewing angle, touch type selection, external dimensions, structural design, voltage, connection method of FPC cable, or specified Smart model.
2. Drawing Confirmation
According to the needs of communication and verification, as well as standard or customized materials, such as resistive touch or capacitive touch, wiring FPC or backlight, arrange the structural drawings of TFT Lcd display screens to customers for confirmation within 2-3 days.
3. Sample making
The sample delivery time for standardized tft display is 2-3 days. For customized lcd display, samples are made according to the confirmed drawings. Sample production takes time. The sample delivery cycle of Lcd screens is generally 7-12 days. The cycle time is 18-21 days.
4. Sample delivery
After the sample production is completed, it will be inspected according to the sample delivery process, and a series of structural and electrical performance tests, high and low temperature and thermal shock aging tests, vibration tests, salt spray tests, etc. will be arranged according to the quality control procedures, and tests will be carried out according to the requirements of different customers , Provide the actual test report of the tft display to ensure the reliable performance of the tft display.
5. Technical service
After receiving the customer's sample, we will provide the IC driver, the initialization code of the LCD screen, and the technical support will cooperate with the adjustment program to light up.
