3.2 inch tft lcd display
►Resolution : 240×320 dots
►View Direction: 12 o’clock
►Interface: SPI
►Driver IC: ST7789V
►RTP/CTP: Optional
►Brightness(cd/m²): 400
►Outline Dimension: 55.04（W）* 77.20（H） * 2.5(T) mm
Description
The K320I20300 is a 3.2 inch tft lcd display with a resolution of 240×320 pixels, a driver IC ST7789V2, a brightness of up to 320-800cd/m2 (typical value), and supports SPI interface, SPI 3 wire and 4 wire serial ports, Standard models and customized RGB interfaces and MCU 8 bit or 16 bit interfaces can be provided. There are 2 kinds of TN screen viewing angles and IPS screen. The logic power supply voltage range is 2.4V to 3.3V. Touch can choose resistive touch screen or capacitive touch screen For touch screen control, we have two connection methods: welded cable FPC and plug-in cable, which can be adjusted with a polarizer to have a wider viewing angle, high definition high-brightness wide viewing angle. It can operate in temperatures from -20°C to +70°C and has a storage temperature range of -30°C to +80°C. The quality of Smart Lcd display is higher than the industry standard, batches of products have no color cast, color and brightness are consistent, industrial and consumer grade production process requirements, stable quality, continuous supply, worry free after sales service and technical support.
General Specifications
| Item | Contents | Unit |
| Size | 3.2 | inch |
| LCM Dimension | 55.04（W）* 77.20（H） * 2.5(T) | mm |
| LCD Active Area | 48.60* 64.80 | mm |
| Number Of Dots | 240×320 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | 12 o’clock | |
| Driver IC | ST7789V | |
| Interface Type | SPI | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight Type | 5 LEDs | |
| Brightness | 400 | cd/m2 |

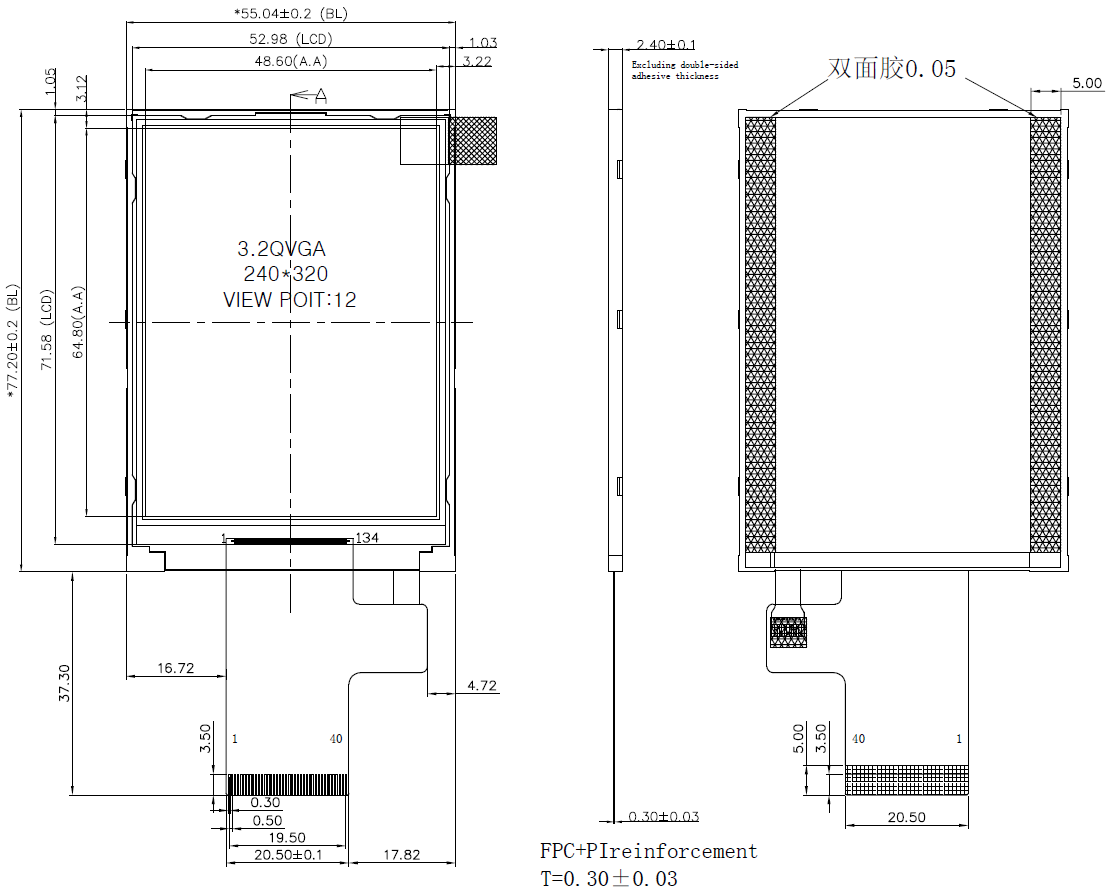

Drawing
Note:
The lcd display pictures and text parameters in the above pages are only for illustration. Smart Company will provide accurate information as much as possible. The tft display pictures published on this site may be slightly different from the actual lcd display. Please refer to the actual tft display and the detailed specification of the TFT Lcd display screen. The specific model information shall prevail. For specific details, please contact the relevant business personnel. If there is any relevant modification to the above content, no prior notice will be given.
Specifications
LCM Pin Definition
| NO. | Symbol | Description |
| 1 | LEDK | BACKLIGHT CATHODE |
| 2 | LEDA | BACKLIGHT ANODE |
| 3 | GND | Ground |
| 4 | RESET | Reset pin |
| 5 | SDA | Serial Data Input |
| 6 | SCL | Serial Clock |
| 7 | RS | Destination register selection. |
| 8 | CS | Chip Select |
| 9 | TE | Frame mark. |
| 10 | GND | Ground |
| 11 | IOVCC | I/O POWER SUPPLY |
| 12 | VCC | POWER SUPPLY |
| 13 | GND | Ground |
| 14 | GND | Ground |
| 15 | GND | Ground |
| 16 | GND | Ground |
| 17 | NC | NC |
| 18 | NC | NC |
| 19 | NC | NC |
| 20 | NC | NC |
Electrical Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
| TFT gate on voltage | VGH | — | 15 | — | V |
| TFT gate off voltage | VGL | — | -10 | — | V |
| TFT common electrode Voltage | Vcom | — | -1 | — | V |
Operating conditions
| Item | Symbol | Min. | Typ. | Max. | Unit |
| Analog Supply Voltage | VCI | 2.5 | 2.8 | 3.3 | V |
| Digital Supply Voltage | VDD | 2.5 | 2.8 | 3.3 | V |
| I/O Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
| Input High Voltage | VIH | 0.8*IOVCC | – | IOVCC | V |
| Input Low Voltage | VIL | 0 | – | 0.2*IOVCC | V |
| Output High Voltage | VOH | 0.8*IOVCC | – | – | V |
| Output Low Voltage | VOL | – | – | 0.2*IOVCC | V |
LED driving conditions
| Item | Symbol | Min. | Typ. | Max. | Unit |
| LED Current | IB | — | 75 | 100 | mA |
| LED Voltage | Vf | 2.8 | 3.0 | 3.2 | V |
| CIE | X | 0.25 | 0.30 | 0.35 | |
| Y | 0.26 | 0.31 | 0.36 | ||
| Brightness of LCM | L | — | 400 | — | cd/m2 |
1. Basic specifications
The required TFT Lcd screen size, resolution, communication interface type between motherboard and TFT screen, display viewing angle, touch type selection, external dimensions, structural design, voltage, connection method of FPC cable, or specified Smart model.
2. Drawing Confirmation
According to the needs of communication and verification, as well as standard or customized materials, such as resistive touch or capacitive touch, wiring FPC or backlight, arrange the structural drawings of TFT Lcd display screens to customers for confirmation within 2-3 days.
3. Sample making
The sample delivery time for standardized tft display is 2-3 days. For customized lcd display, samples are made according to the confirmed drawings. Sample production takes time. The sample delivery cycle of Lcd screens is generally 7-12 days. The cycle time is 18-21 days.
4. Sample delivery
After the sample production is completed, it will be inspected according to the sample delivery process, and a series of structural and electrical performance tests, high and low temperature and thermal shock aging tests, vibration tests, salt spray tests, etc. will be arranged according to the quality control procedures, and tests will be carried out according to the requirements of different customers , Provide the actual test report of the tft display to ensure the reliable performance of the tft display.
5. Technical service
After receiving the customer's sample, we will provide the IC driver, the initialization code of the LCD screen, and the technical support will cooperate with the adjustment program to light up.
